M140(VTL chuck 5300mm swing 6380mm CNC VTL)

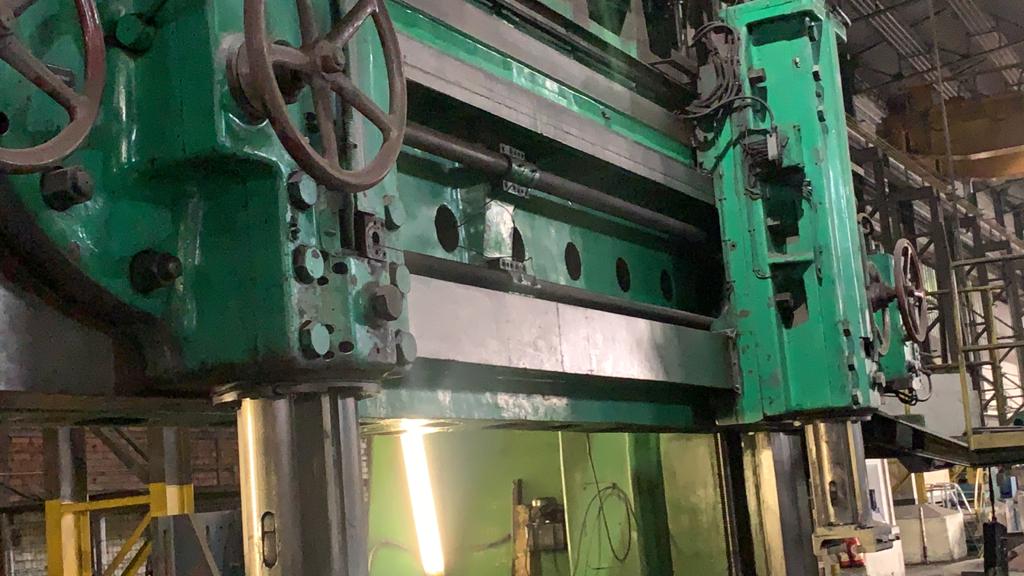

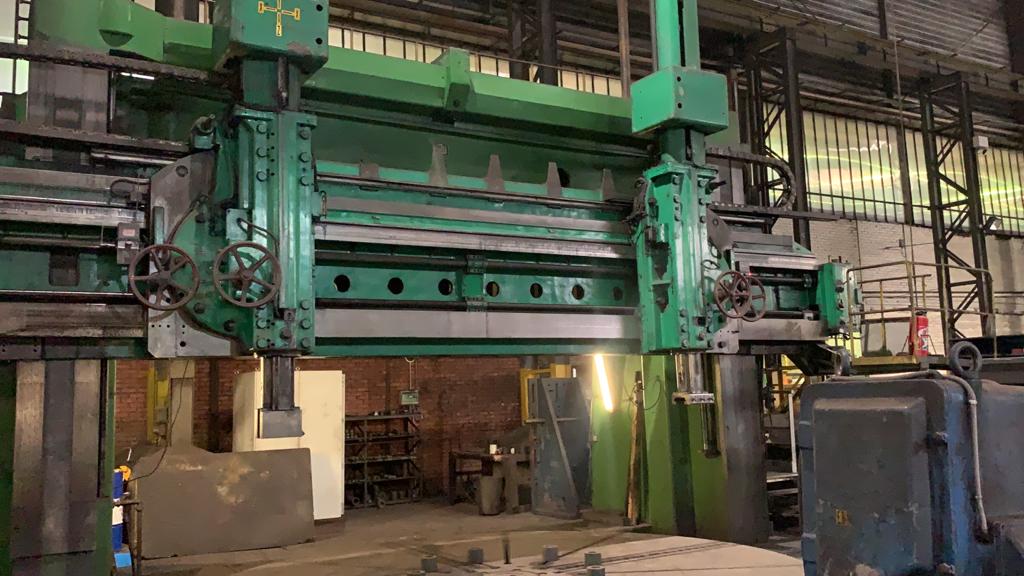

WMW NILES DKZ 6300 vertical turret lathe

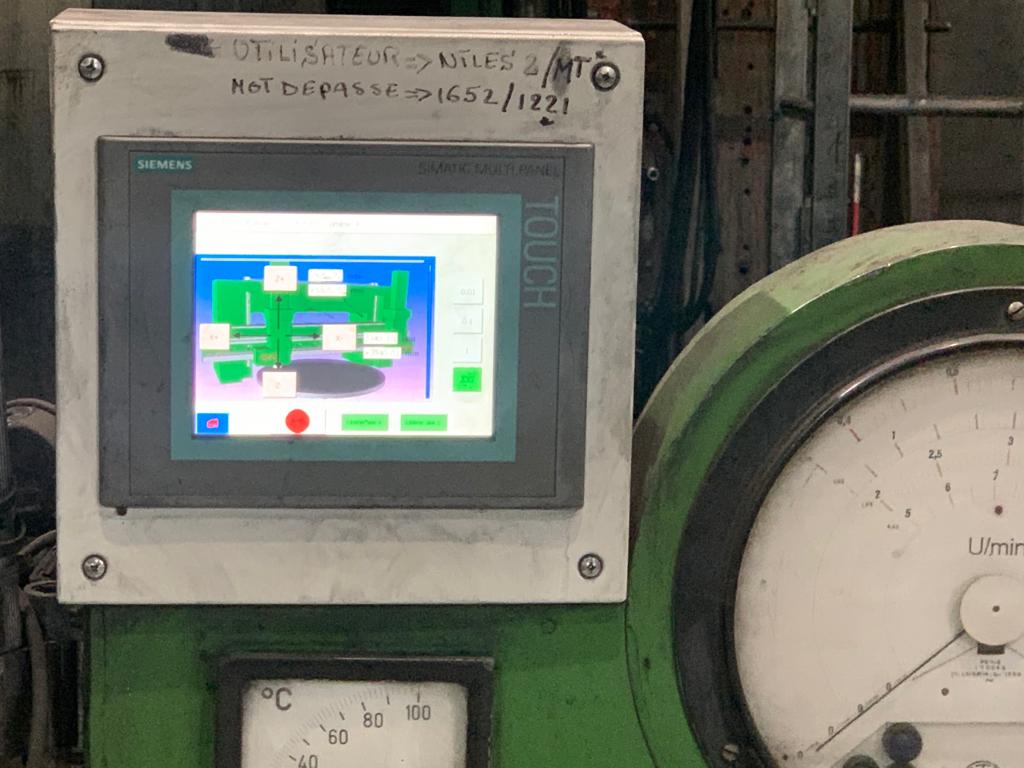

CNC Siemens Control

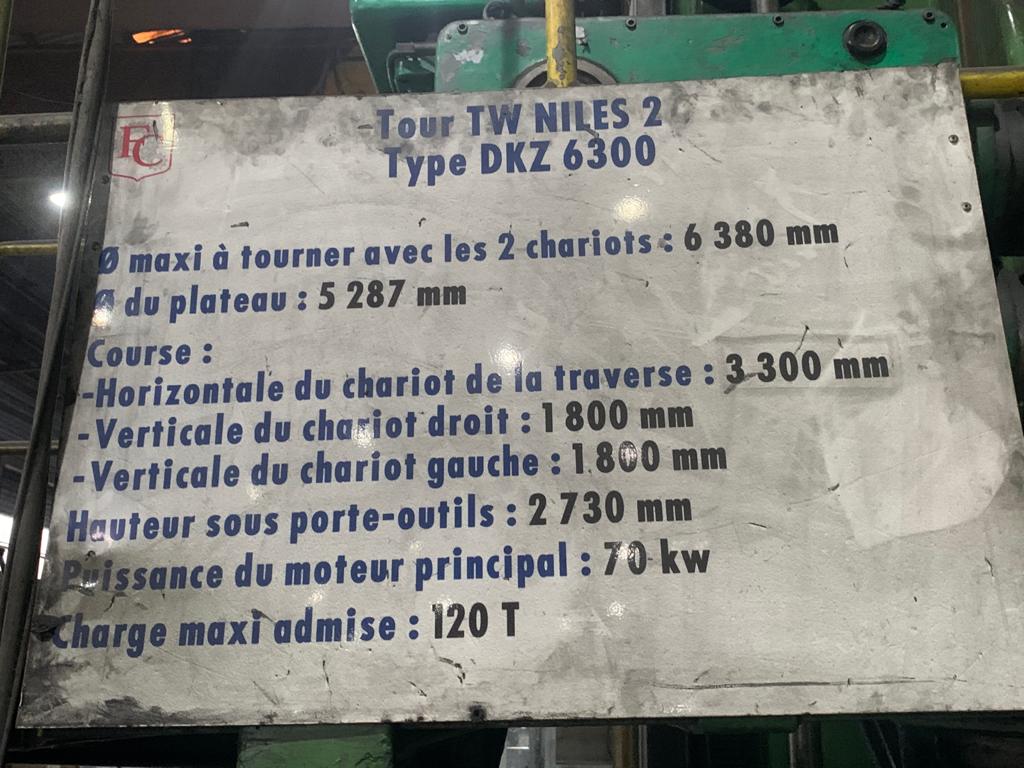

turning diameter  6380 mm
diameter of the plate 5300 mm
Ram x travel : 3300 mm
Ram vertical travel: 1800 mm
max turning height 3300 mm
Main motor power 70 kW
Maximum load allowed on table 120T
weight of machine circa 150 t
Machine still under power
